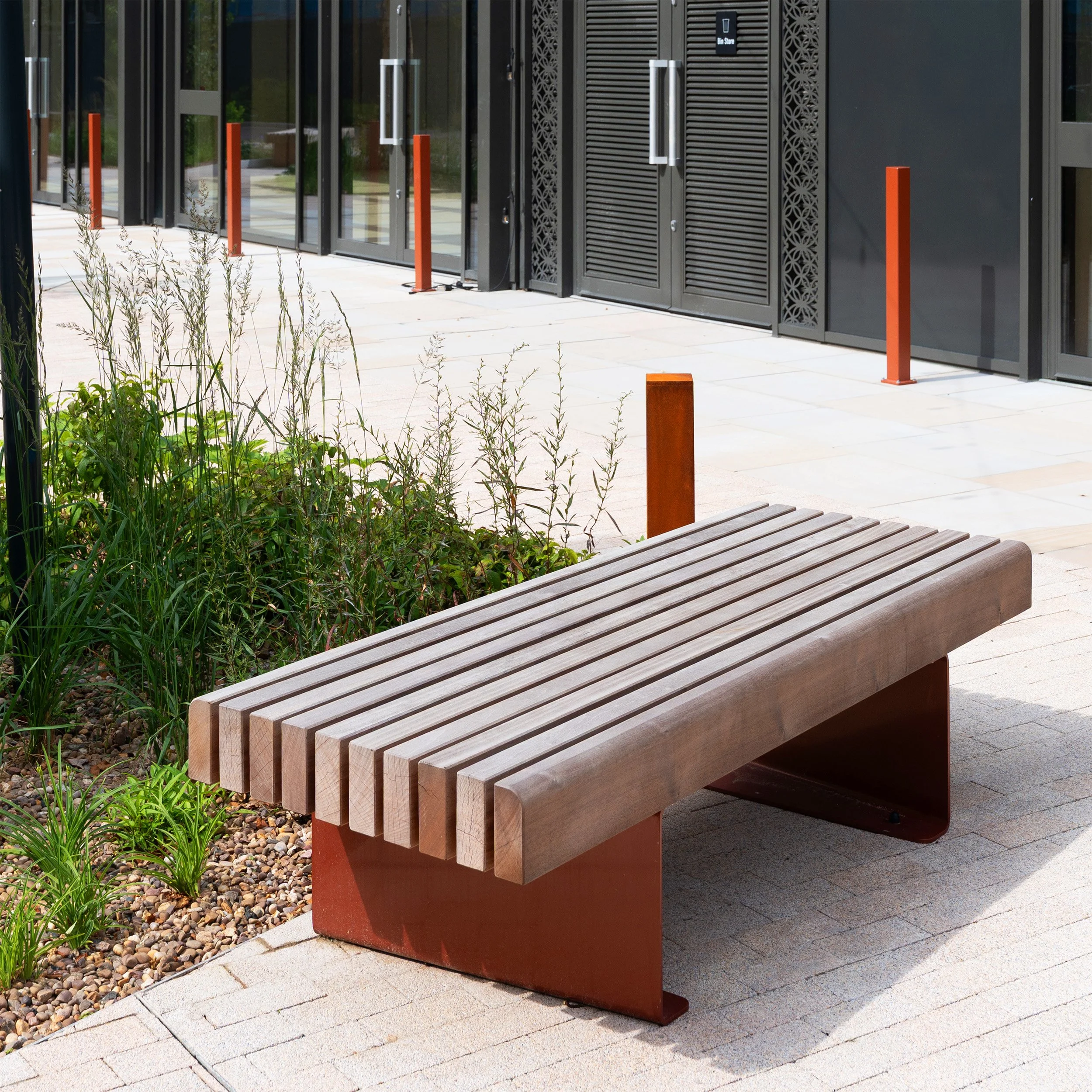

Obliq Bench***UNFINISHED***
We gave ourselves a brief to create the sturdiest bench using the least material. Obliq’s slim, plate legs form a simple, triangulated structure that keeps everything solid. The Obliq collection also features an unusual footprint when coupled with other units.
Obliq doesn’t offer curves as standard but is perfectly happy in faceted arrangements, and can be customised with the same options and accessories as all our other seating.
Product
Size:
Length: 1800 / 2400 / 3000 as standard. Bespoke options available
Width: 470mm
Height: 450 mm
Weight:
Approx. 40 kg per metre
Impact:
Approx. 108 kgCO2e per metre
Options:
Armrests, tables, skate studs, lighting, modular
Materials + Finishes
Steel
Galvanised & polyester powder-coated to specified RAL or BSEN colour
Hardwood timber
Machine-planed, hand-sanded, untreated
Stainless steel fixings throughout
Satin finish as standard
Freestanding ✖
Obliq is not stable enough to be a freestanding unit in public settings.
Surface mounting ✔
As standard, Central is surface mounted via 2x discreet feet on each leg that accept Max. Ø10mm anchor bolts.
Sub-surface mounting ✔
The standard Central leg can be adapted to suit various depths of sub-surface mounting, or we can manufacture risers to elevate units between slab and finished floor levels.
Installation
Downloads
CAD Drawings
Datasheets
CUBE Street Furniture Ltd., 0161 399 6784
cubestreetfurniture.co.uk
hello@cubestreetfurniture.co.uk

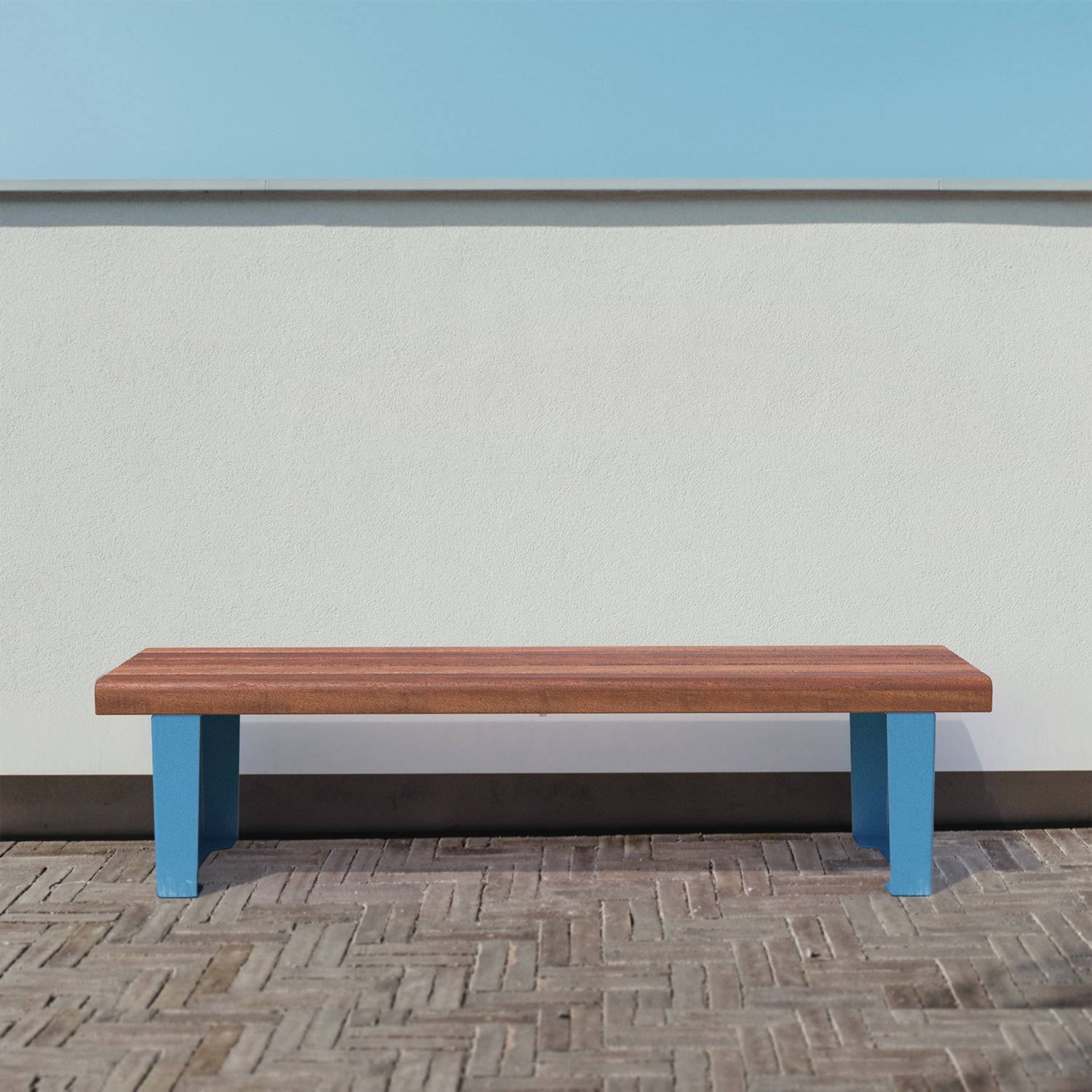

Central Bench - Dimensions:
Length: 1800 / 2400 / 3000 as standard. Bespoke options available
Width: 470 mm
Height: 450 mm
Weight: Approx. 40 kg per metre
Impact: Approx. 108 kgCO2e per metre
Materials:
Steel - Galvanised & polyester powder-coated to specified RAL or BSEN colour
Hardwood timber - Machine-planed, hand-sanded, untreated
Stainless steel fixings throughout - Satin finish as standard
Installation:
Freestanding: No
Surface mounting: Yes via 2x Max. Ø10 anchors per leg
Sub-surface mounting: Yes via 2x Max. Ø10 anchors per leg (non-standard leg required, get in touch for additional cost)
Options:
Armrests, tables, skate studs, lighting, modular
Sawn
Robust, chunky timbers, traceable back to source, milled and hand-sanded
Design
Created and made by CUBE in the UK. We know our products inside out and are always on hand to offer advice on repair and replacement
Material choices based on science and engineering, finished for longevity & style
Materials
Part of the Obliq Collection
OBliq Bench
see Obliq in use
